Carbon Steel Snow Melting Agent Spreader
It is applicable to the melting of ice and snow in airports, high-grade highways, municipal roads, trunk highways (national and provincial roads), bridge pavements, factory areas, squares, etc. It has functions such as sprinkling coarse salt, fine salt, de-icing agent, dry sand and special de-icing agent. The volume of the distribution hopper is divided into: 1.1m³-15m³ distribution hoppers (customized sizes can be made according to customer requirements). Lifting devices can be classified into various types according to their functions, such as vehicle-mounted lifting devices, hook arm lifting devices, pre-wet lifting devices, and liquid lifting devices.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
| Project? | Unit | Parameters or configurations | ||
| Vehicle parameters | Silo volume | m³ | 0.3-12 | |
| Maximum speed | km/h | 10-60 | ||
| Spreading width | m | 3-15（Stepless adjustable） | ||
| Sprinkling amount | g/㎡ | snow-melting agent 5-80/salt 30-350 | ||
| shell material | / | carbon steel | ||
| engine power | hp | 10.5hp/23hp | ||
0.3m³ Rear-mounted Spreader
1.1m³ Snow Melting Agent Spreader
12m³ Snow Melting Agent Spreader
10m³ Snow Melting Agent Spreader
Pre-wet Snow Melting Agent Spreader
Hook Lift De-icing Agent Spreader
Product Features
Vehicle Product Features

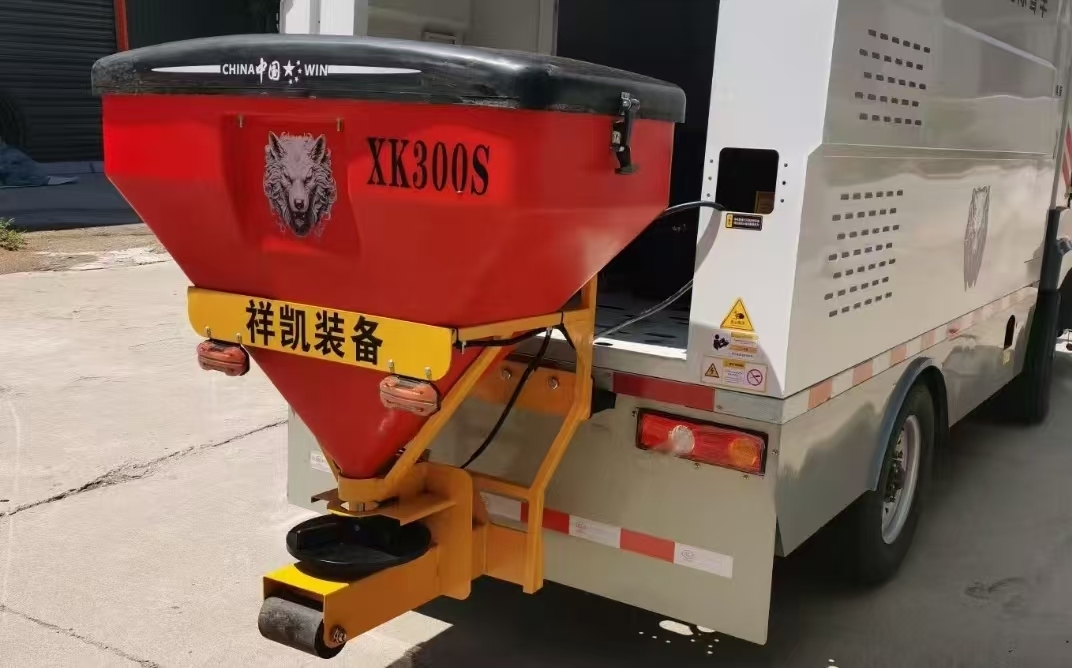

(1)0.3m³ Rear-mounted Spreader
It features a hopper made of PE material and a powder-coated metal frame, enabling quick and easy installation. Equipped with a 24V or 12V electric motor and belt drive system. The spreading direction and range can be manually adjusted. Fitted with casters for convenient transportation and storage. A breaker bar is installed at the lower part of the spreading shaft to facilitate stirring and ensure smooth material discharge.

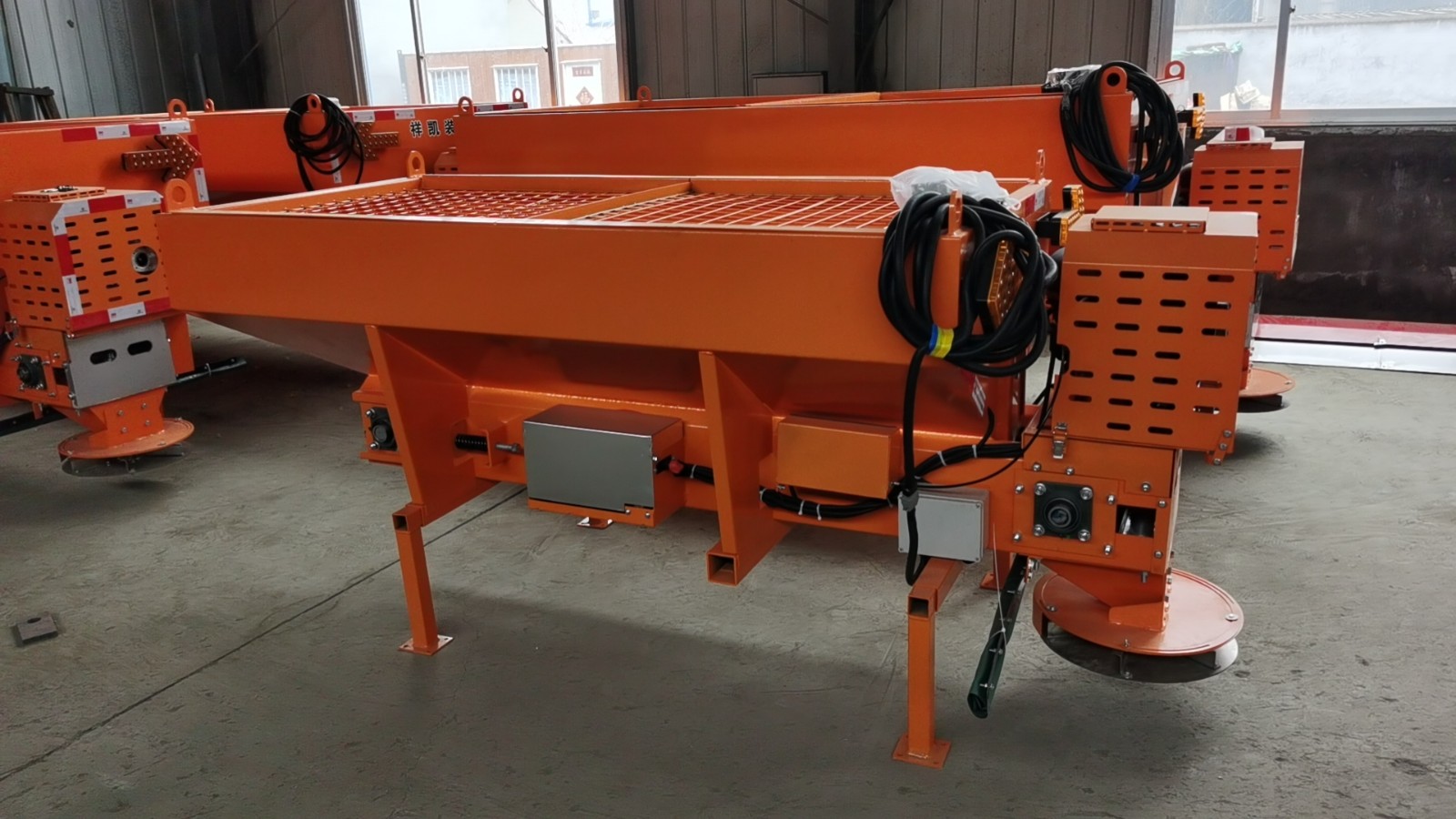

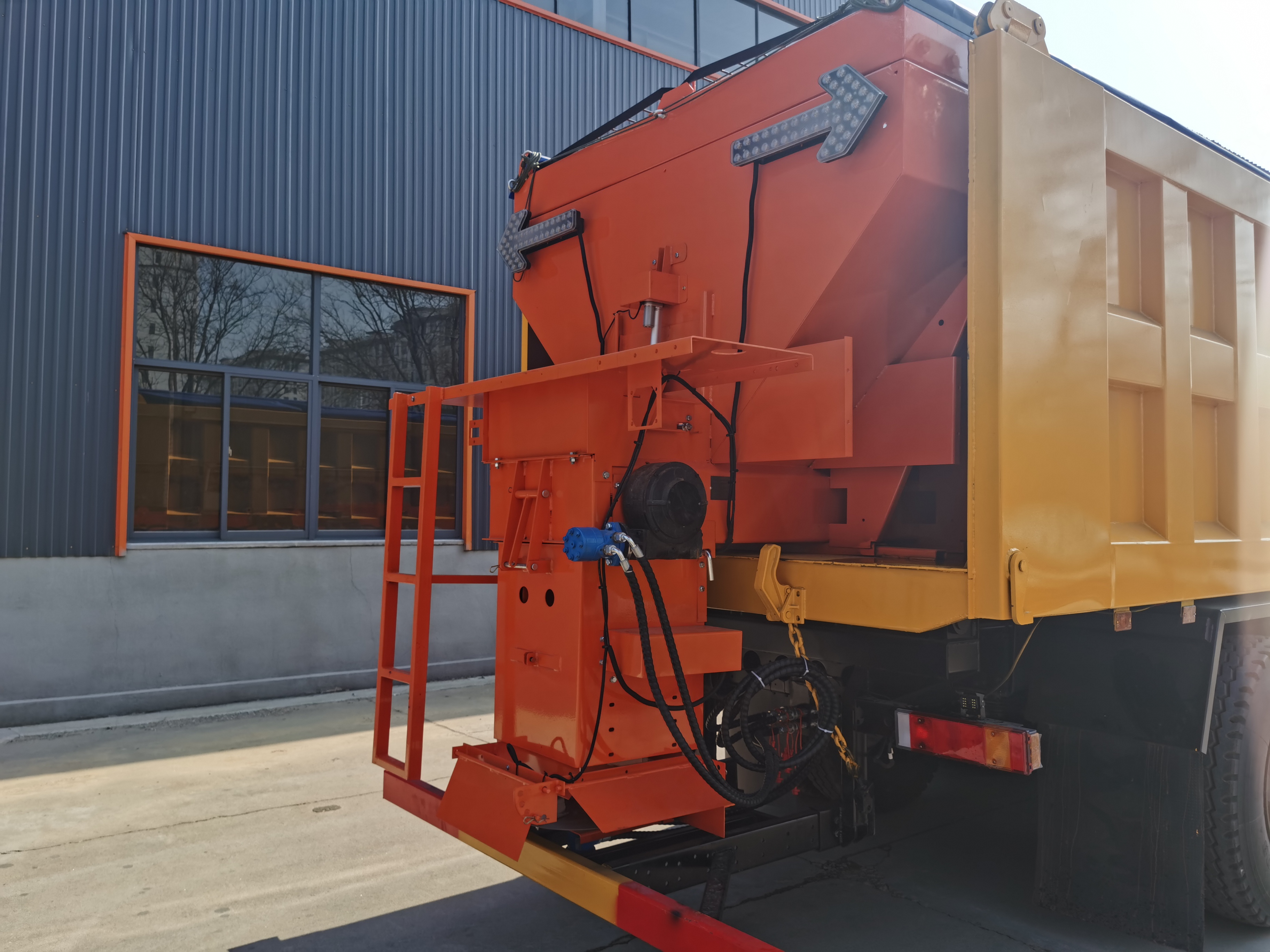

(2)1.1m³ Snow Melting Agent Spreader
All structural components including the material bin, transmission parts, spreading components and discharge chute are made of wear-resistant materials and treated with overall anti-corrosion protection. Material is conveyed by chain and scraper. The effective width of the chain is 300 mm. An inverted V-shaped structure is installed above the chain, and a material backflow prevention device is fitted on the chain.This spreader is equipped with a de-icer crushing function. A safety filter screen is mounted on the top of the bin to remove large foreign matters from de-icing agent and protect the equipment.Adjustable-height and adjustable-width support legs are installed at the bottom. The spreader can be easily loaded without lifting equipment and stored conveniently when not in use. The legs are fitted with travelling wheels for easy movement.

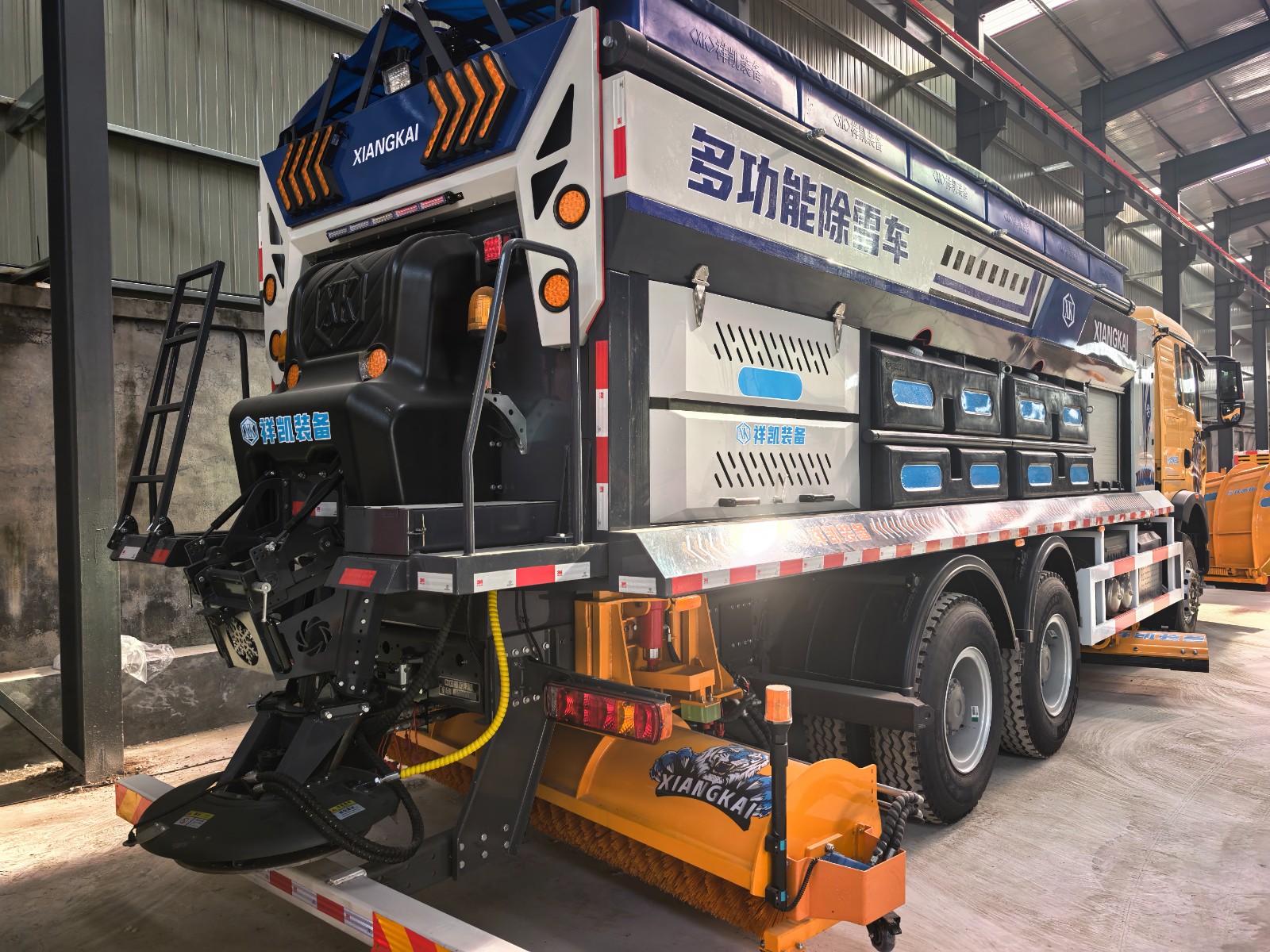

(3)12m³ Snow Melting Agent Spreader
Feeding mode of spreader: Adopts scraper chain treated with Dacromet technology, anti-slip and stable in conveying capacity.Spinner disc material: Stainless steel.Main body material: 4mm thick carbon steel. Parts contacting deicing agent feature high anti-corrosion performance.Spreading volume is adjustable in real time. Spreading density, width and direction can be set and adjusted inside the cab according to road conditions. The control panel displays and records operating parameters to meet actual working demands.Control system: Wired remote controller ensures convenient and reliable operation. A central console in the cab realizes integrated control of spreading and snow removal, with all operations finished inside the vehicle.An inverted V-shaped structure inside the hopper avoids direct pressure on the scraper chain and reduces system load.A mechanical crushing device at the discharge end breaks caked deicing agent to prevent blockage and ensure smooth feeding.Discharge opening size is electrically adjustable to match different snow accumulation levels.Equipped with low material level alarm to remind operators when materials run out.
(4)Hook Lift De-icing Agent Spreader
Our hook lift spreader is the first domestically developed new product designed to match hook lift trucks. It features high flexibility and convenience. The equipment can be used for emergency snow removal in winter as well as daily waste collection and transportation. It enables multi-purpose use of hook lift trucks, cutting costs and improving vehicle utilization rate. It is widely compatible with 18-ton and 25-ton hook lift trucks of all mainstream brands on the market.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers////
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question: Can the 0.3m³ rear-mounted spreader solve the material jamming issue?
Answer: Yes. The 0.3m³ rear-mounted spreader is fitted with a breaker bar beneath the spreading shaft, which stirs materials and ensures smooth discharge.
Question: Does the 1.1m³ spreader require power supply from the vehicle chassis?
Answer: No. The 1.1m³ spreader is equipped with an independent power system driven by a gasoline engine, requiring no power from the vehicle chassis.
Question:Is the hook lift spreader compatible with most hook lift truck chassis?
Answer: Yes. This hook lift spreader is widely compatible with 18-ton and 25-ton hook lift trucks of all mainstream brands on the market.
