Ice Breakers For Trucks

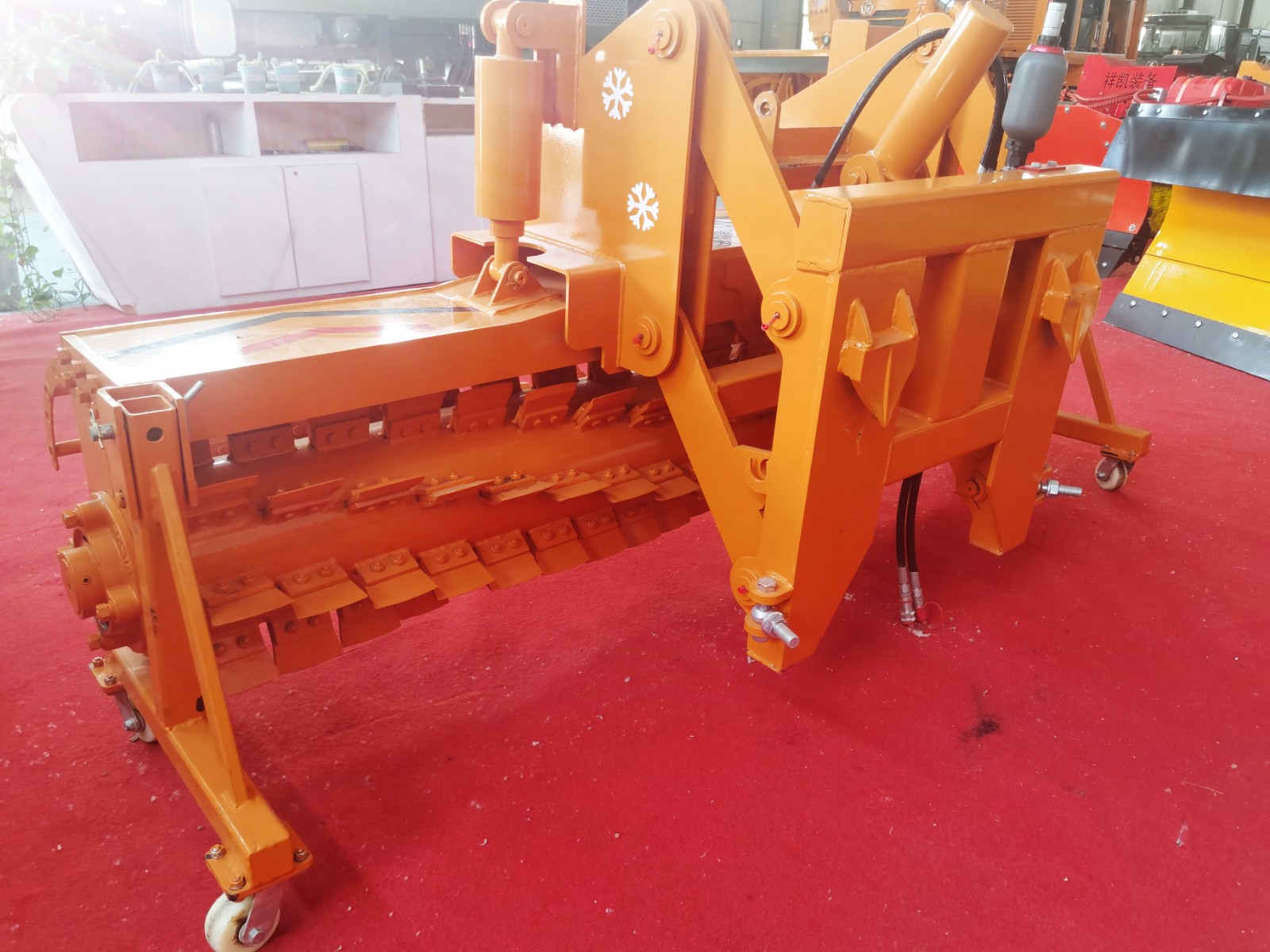

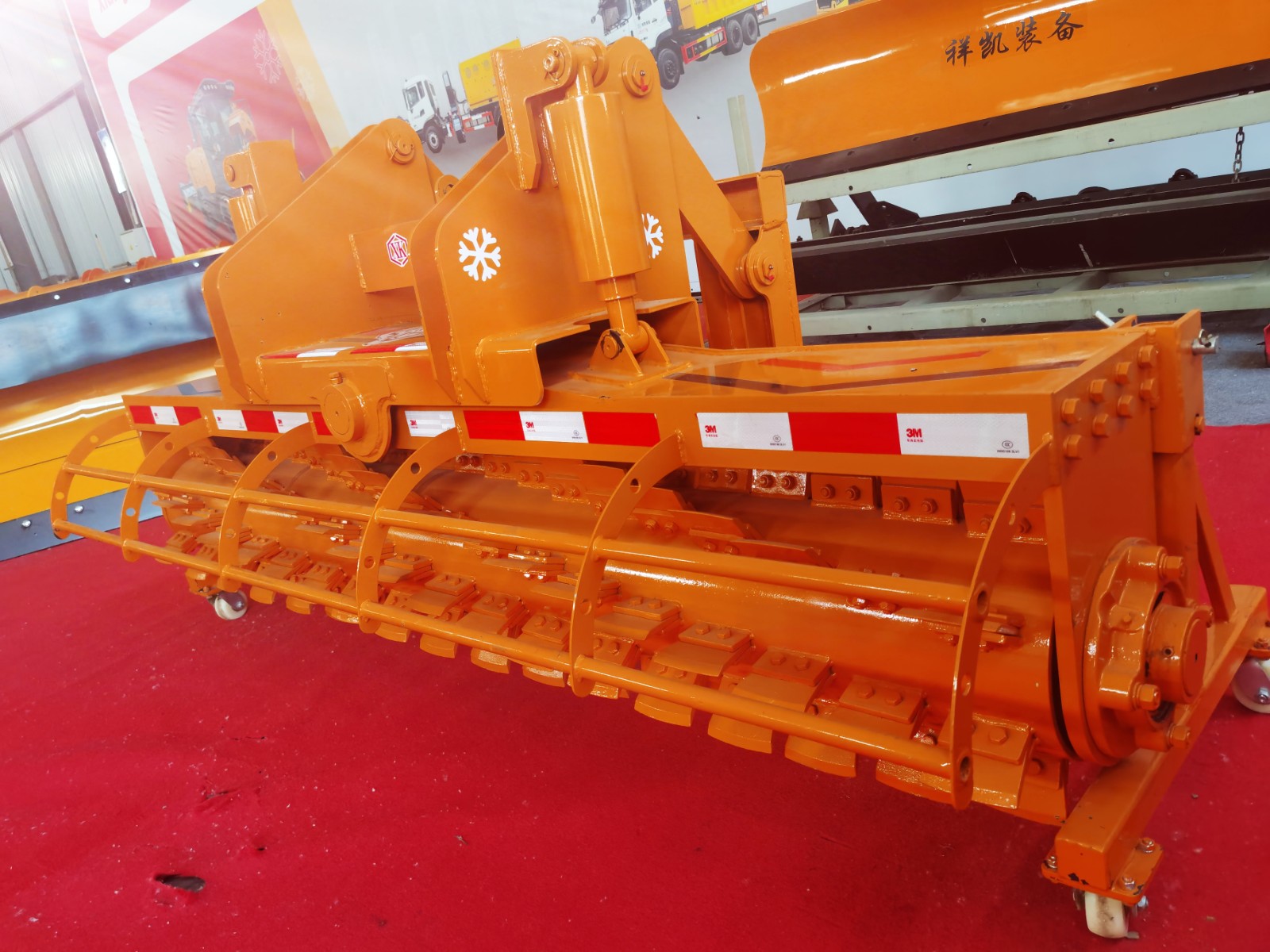

1.The vehicle-mounted ice-breaking machine is a widely used ice-breaking device on expressways, ordinary roads and squares. It can be conveniently installed on the chassis of various types of vehicles and has the advantages of light weight, simple structure, convenient use and maintenance, as well as excellent ice-breaking effect.
2. The ice-breaking machine adopts an independent hydraulic unit. The four-bar linkage mechanism is controlled by the extension and retraction of the oil cylinder to achieve the upward and downward movement of the ice-breaking machine and the forced downward pressure of the ice-breaking roller.
3. The hydraulic system is equipped with accumulators and profiling units. During operation, it can mimic the road surface to enhance the ice-breaking effect of the ice-breaking machine.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
| Project | Unit | Parameters or configurations | ||
| Vehicle parameters | boundary dimension | mm | 2570 * 1120 * 1050 | |
| Maximum ice-breaking thickness | mm | 30 | ||
| Ice-breaking width | mm | 2500 | ||
| Ice-breaking operation speed | km/h | 5-10 | ||
| Voltage of the hydraulic station | V | 24V（DC） | ||
| weight | kg | 1200 | ||
| Youdaoplaceholder0 Specification | / | 122✖106 | ||
| Diameter of the ice-breaking roller | mm | 516 | ||
Product Features
Vehicle Product Features
The rotary brush is driven by two built-in hydraulic motors on both sides, featuring powerful output and high rotating speed. It is designed with a road profiling function to follow the road surface during sweeping. The snow brush can automatically adapt to the cross slope of the road, maintain full contact with the ground and work at the optimal force angle for snow removal, and adjust accordingly to different road conditions.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question: Can this ice breaker follow the road surface profile?
Answer: Yes. This ice breaker is equipped with a road profiling device, adopting both mechanical and hydraulic profiling modes. It can follow the road surface during operation, delivering excellent ice breaking performance and high working efficiency.
Question: How does this ice breaker perform lifting, lowering and forced pressing movements?
Answer: This ice breaker adopts an independent hydraulic unit. The extension and retraction of hydraulic cylinders drive the four-bar linkage to realize the lifting, lowering of the whole machine and forced pressing of the ice breaking roller.
Question:Can this ice breaker be quickly assembled and disassembled?
Answer: Yes. It is equipped with a quick-connect bracket, enabling fast connection and disconnection with the vehicle chassis. The installation is simple and reliable, and the unit responds promptly to operating commands.
