Multifunctional Intelligent Snow Removal Vehicle

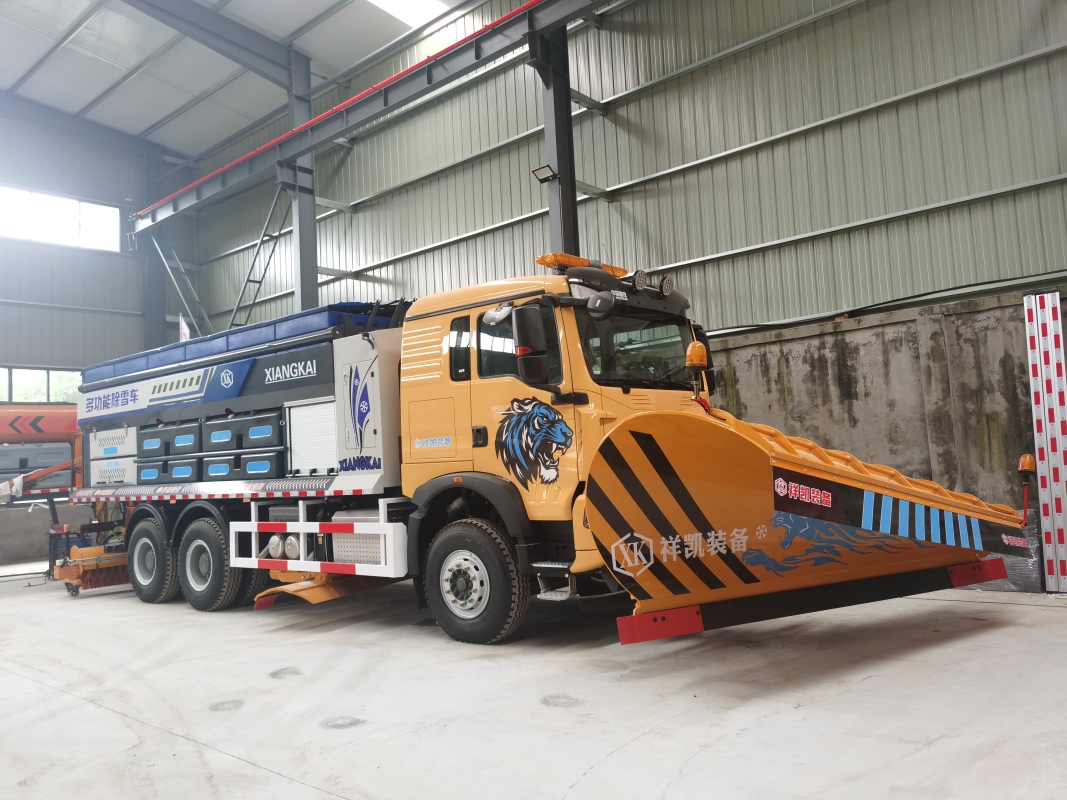

The 25-ton multifunctional intelligent snow removal vehicle comes into being. Adopting an optimal combination of front snow pusher, middle belly shovel, side shovel, rear roller brush and rear spreader, it integrates core technologies including intelligent control, efficient snow clearing and melting, and safety protection. It realizes integrated operations of pushing, shoveling, sweeping and spreading. Whether for daily snow clearance or emergency rescue in severe snow disasters, it clears vital passages with outstanding performance, serving as an all-round guardian for winter road maintenance.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
(1)Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
The company boasts solid R&D strength and a modern management system. It holds independent import and export qualifications and has been rated as a consumer-satisfying enterprise, with an annual output of 2000 sets of snow removal equipment.
The company owns modern workshops and top-tier domestic production equipment, alongside complete quality testing facilities and a rigorous quality management system. Through years of independent innovation, its main products cover multi-functional snow removers, maintenance vehicles, water sprinklers, snow melting spreader trucks, snow shovels, deicing agents, spreaders, ice breakers, snow roller brushes, guardrail cleaners and garbage compression transfer equipment.The products feature superior performance and leading-edge technology, filling gaps both domestically and internationally, and have made remarkable contributions to national development, safety, environmental protection and emergency preparedness.
Adhering to the 6S management model, the company continuously improves product quality and after-sales service. We cooperate sincerely with domestic and overseas partners based on premium quality, competitive prices and considerate services to jointly create a promising future.

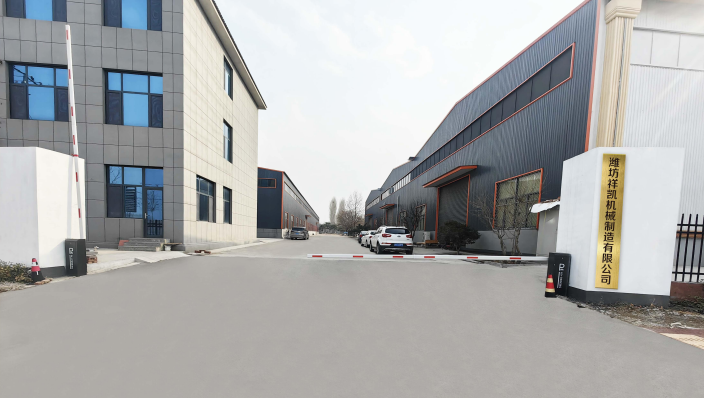

The company owns modern production workshops and first-class domestic production equipment, as well as complete quality inspection facilities and a rigorous quality management system. It is qualified for import and export business in China, and recognized as a high-tech enterprise in Shandong Province and a consumer-satisfying entity. Equipped with advanced facilities such as automatic CNC machine tools, large vertical machining centers, high-precision deep hole boring machines, precision grinders and laser cutting machines, it provides solid guarantee for product quality and output.
(2)Corporate Honors
Product TitleProduct Titlero
(3)Technical Parameters
| Project | Unit | Parameters or configurations | ||
| Vehicle parameters | Total mass | kg | 25000 | |
| Maximum speed | km/h | 80 | ||
| Drive type | / | 6✖4 | ||
| Fuel form | / | Diesel | ||
Parameters of special equipment | The width of the snow shovel | mm | 3300-3600 | |
| The deflection Angle of the snow shovel | ° | ±30 | ||
| Snow removal shovel obstacle avoidance height | mm | 150 | ||
| The width of the snow brush | mm | 2500-3500 | ||
| Outer diameter of the bristles | mm | 815 | ||
| The rotational speed of the snow brush | rpm | 200-360 | ||
| The deflection Angle of the snow brush | ° | ±30 | ||
| Spreader volume | m³ | 7-12 | ||
| Spreading width | m | 2-22（Stepless adjustable） | ||
| Maximum spreading speed | km/h | 8 | ||
Spreading amount | g/m³ | De-icing agent5-280g/m³、sand30-350g/m³ | ||
| Pre-wetting volume (optional) | m³ | 0.7-2 | ||
| De-icing shovel (optional) | mm | 3300 | ||
| Sprinkler tank (optional) | m³ | 10 | ||
Product Title
Product Title
Product Title
Product Title
Product Title
Product Title
(4)Product Features
Vehicle Product Features
Based on the design concept of maximizing customer value and long-term multi-angle research and cooperation with international heavy truck experts, the Howo series snow removal vehicles deliver powerful working performance, exquisite interior and exterior decoration, reliable safety, comfortable riding experience and easy operation. They feature favorable fuel economy and low maintenance costs, bringing users satisfying cost-effective experience.
Auxiliary Equipment Product Features

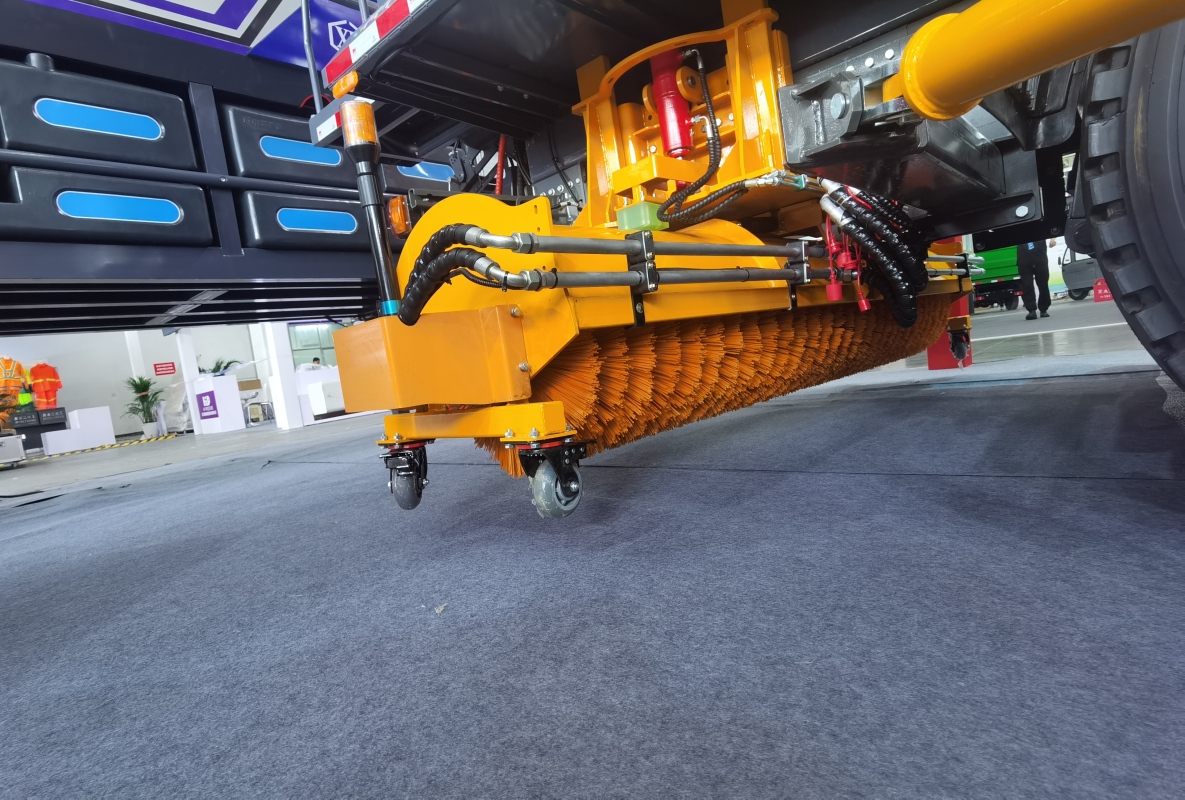

（1）The roller brush features forced pressing and automatic ground pressure adjustment. Its contact height with the ground can be adjusted as required.It automatically adapts to road cross slopes, maintains full ground contact and optimal snow cleaning angle, fits uneven road surfaces and dodges obstacles autonomously.It automatically adapts to road cross slopes, maintains full ground contact and optimal snow cleaning angle, fits uneven road surfaces and dodges obstacles autonomously.Adopting lightweight design with no supporting casters, it reduces overall weight, failure rate and boosts snow removal efficiency.The roller brush bracket adopts a parallel four-bar linkage mechanism, keeping the brush parallel to the ground at all positions.

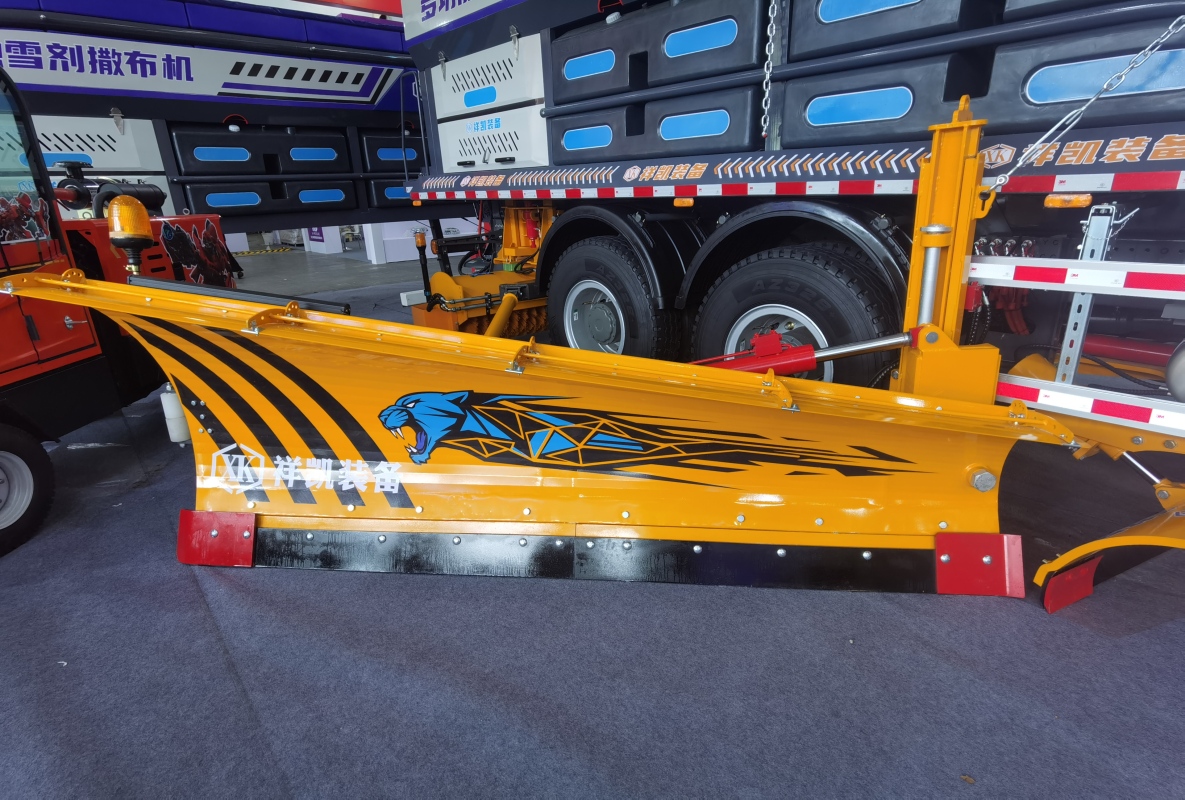

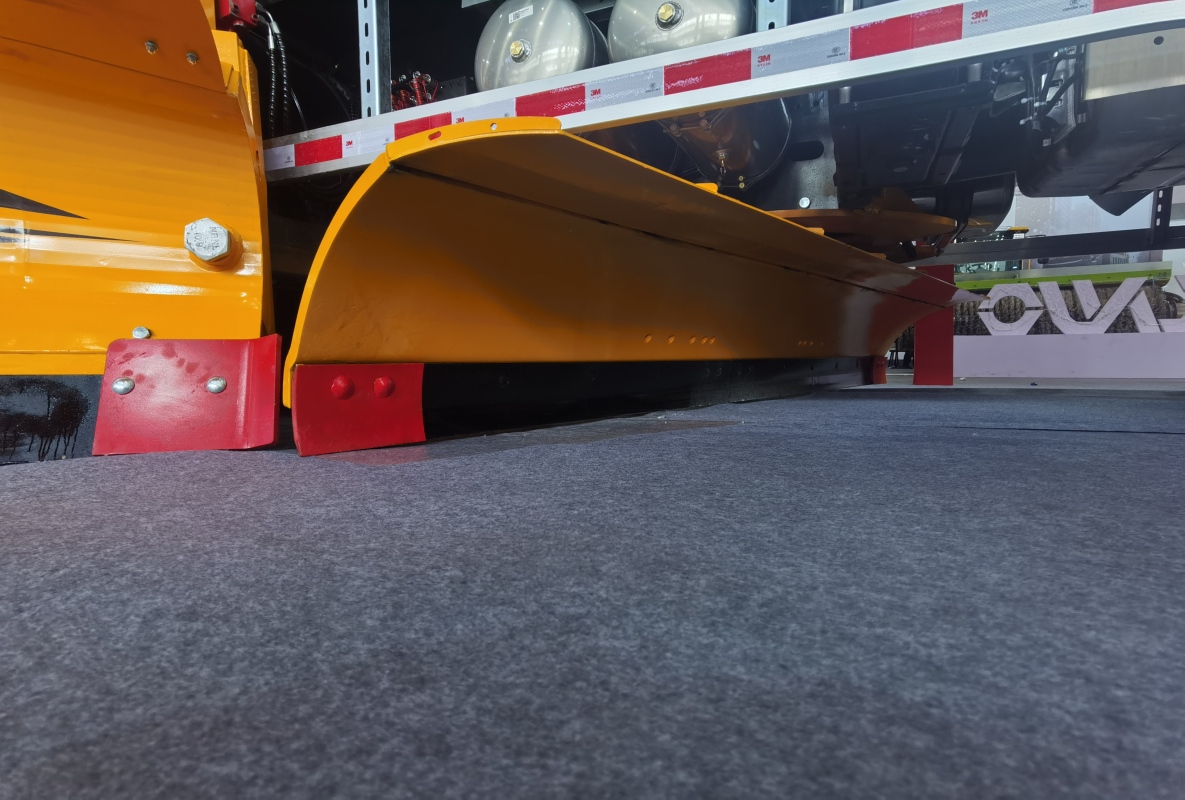

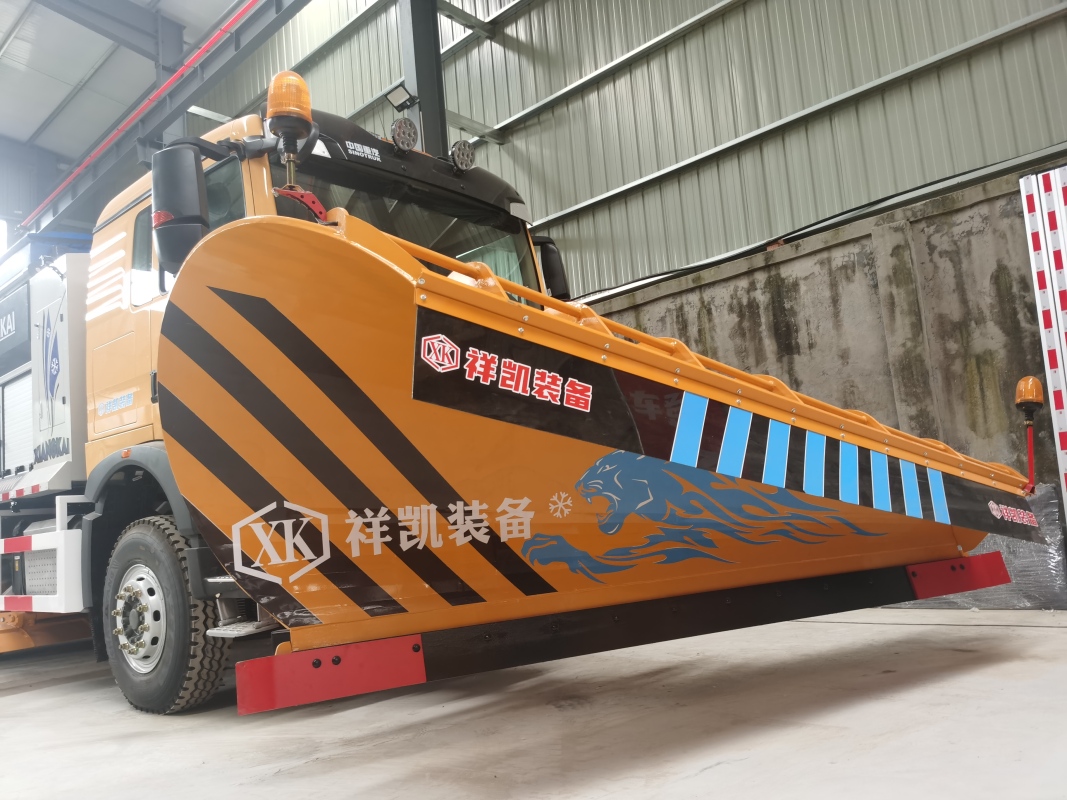

（2）The height and left-right deflection angle of the snow shovel are adjustable. Its lifting height exceeds 300mm, and the deflection angle ranges from -30° to +30°.All operations including lifting, swinging and gravity landing of the pushing plate can be completed by a single operator inside the cab.The curved plate is made of wear-resistant and corrosion-resistant Q345 steel plate with a thickness of 4mm, featuring wider, higher and sturdy structure.The snow shovel is equipped with forced pressing and ground profiling function.
（3）Model XK90PXJ snow blower is a medium-sized snow removal equipment developed by Weifang Xiangkai Machinery Manufacturing Co., Ltd. It is mounted on 18-ton and 25-ton heavy truck chassis for winter snow clearing. It can realize long-distance snow conveying and vehicle snow loading.Powered by the truck chassis without an independent engine, it is interchangeable with existing snow removal vehicles. It features easy installation and expands the working functions of snow vehicles.
（4）Feeding mode of spreader: Adopts scraper chain treated with Dacromet technology, anti-slip and stable in conveying capacity.Spinner disc material: Stainless steel.Main body material: 4mm thick carbon steel. Parts contacting deicing agent feature high anti-corrosion performance.Spreading volume is adjustable in real time. Spreading density, width and direction can be set and adjusted inside the cab according to road conditions. The control panel displays and records operating parameters to meet actual working demands.Control system: Wired remote controller ensures convenient and reliable operation. A central console in the cab realizes integrated control of spreading and snow removal, with all operations finished inside the vehicle.An inverted V-shaped structure inside the hopper avoids direct pressure on the scraper chain and reduces system load.A mechanical crushing device at the discharge end breaks caked deicing agent to prevent blockage and ensure smooth feeding.Discharge opening size is electrically adjustable to match different snow accumulation levels.Equipped with low material level alarm to remind operators when materials run out.
