Snow Blower On Car

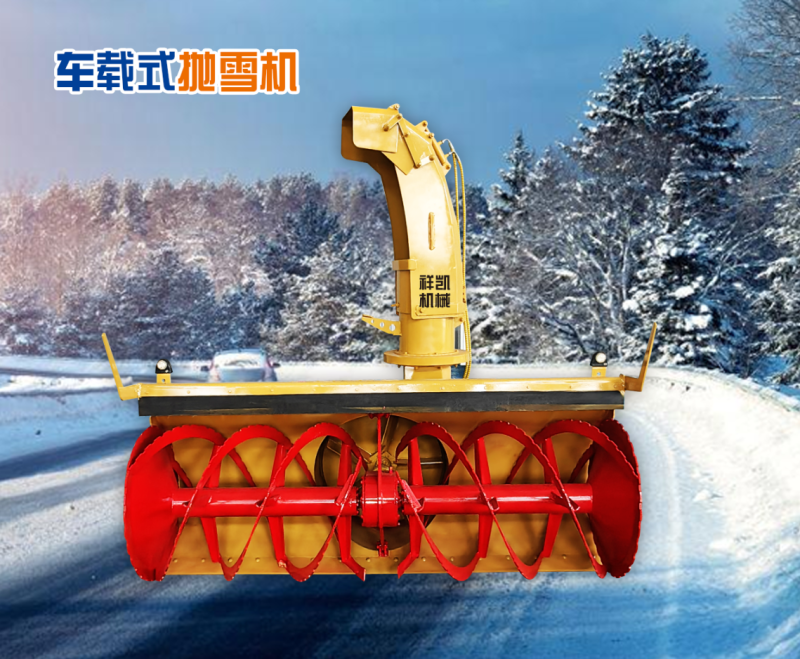

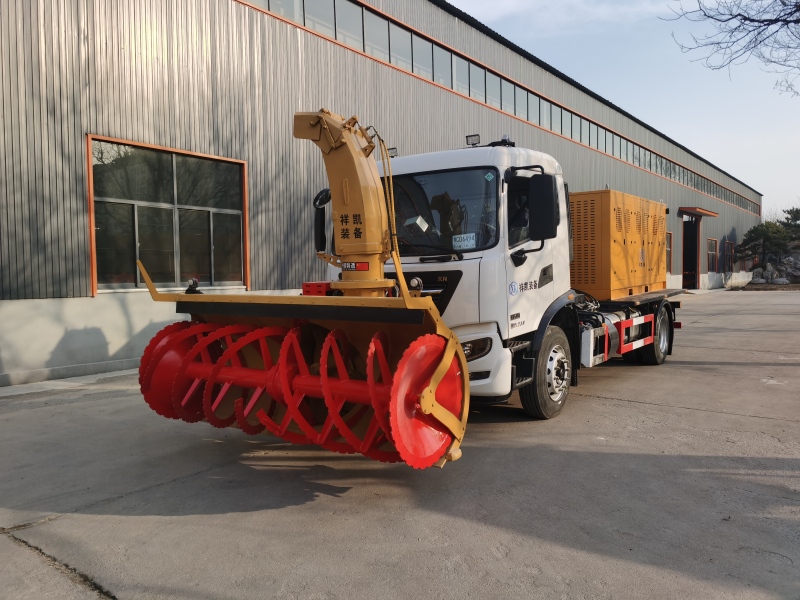

The vehicle-mounted snow thrower is a medium-sized snow thrower, developed by Weifang Xiangkai Machinery Manufacturing Co., LTD. It is a dedicated winter snow removal equipment that can be hung on the chassis of 25-ton and 18-ton heavy trucks. It can achieve two functions: long-distance snow transportation or vehicle snow loading. The snow thrower uses the power of the chassis and does not require a dedicated engine. It can be interchanged with existing snow removal vehicles, thus having the advantages of convenient connection and enhancing the functions of snow removal vehicles.

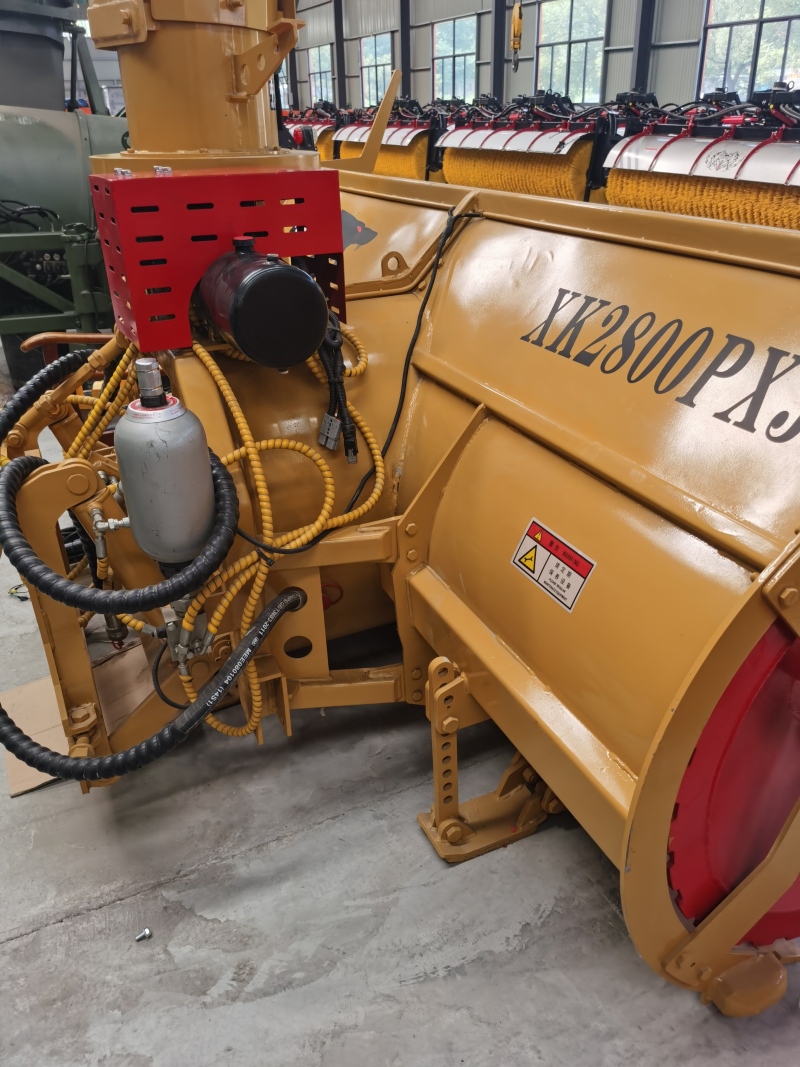

The snow thrower is fully hydraulic-driven. The adjustment of the snow guide and the lifting of the snow thrower are driven by hydraulic cylinders. The rotation of the snow thrower impeller and the rotation of the snow accumulation screw are driven by a single hydraulic motor.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
| Project | Unit | Parameters or configurations | ||
| Vehicle parameters | Diameter of the snow thrower screw | mm | 900 | |
| Diameter of the snow-throwing rotor | mm | 850 | ||
| Operating width of the snow thrower | mm | 2400-2700 | ||
| The rotor speed of the snow thrower | rpm | 1500-3000 | ||
| Maximum snow-throwing distance | m | ≥30 | ||
| working performance | T/h | 2500 | ||
| Operating speed | km/h | 5-30 | ||
Product Features
Vehicle Product Features
Model XK90PXJ snow blower is a medium-sized snow removal equipment developed by Weifang Xiangkai Machinery Manufacturing Co., Ltd. It is mounted on 18-ton and 25-ton heavy truck chassis for winter snow clearing. It can realize long-distance snow conveying and vehicle snow loading.Powered by the truck chassis without an independent engine, it is interchangeable with existing snow removal vehicles. It features easy installation and expands the working functions of snow vehicles.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question: How is the snow thrower driven for operation?
Answer: The snow thrower adopts full-hydraulic drive. Hydraulic cylinders control the adjustment of the snow deflector and the lifting/lowering of the unit, while a single hydraulic motor drives both the throwing impeller and snow auger.
Question: What snow-throwing functions does the snow thrower have?
Answer: The snow thrower can discharge snow over a long distance and load snow onto following vehicles, which can travel alongside, rear-side or directly behind the main truck.
Question:What is the working principle of the snow thrower?
Answer: Working Principle of the Snow Thrower:After being cut by the spiral snow-collecting auger, snow is conveyed into the central throwing chamber of the snow thrower. Centrifugal air exhaust generated by the throwing rotor creates a large pressure difference between the snow intake and discharge outlets, drawing snow into the unit. The high-speed rotating fan impeller accelerates the snow to form a high-speed mixed airflow of snow and air, ejecting the snow over a long distance.
