mid-mounted snow blower

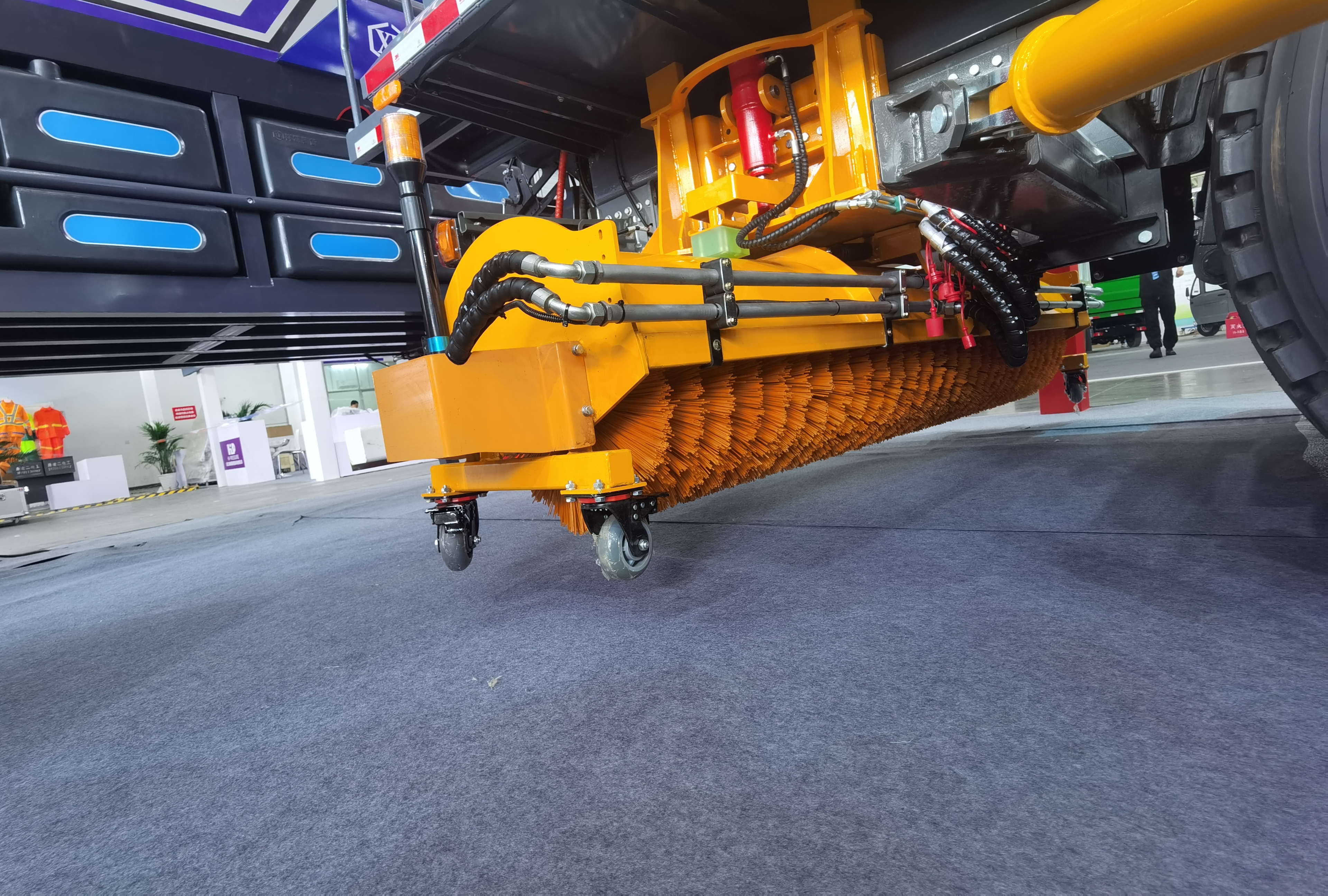

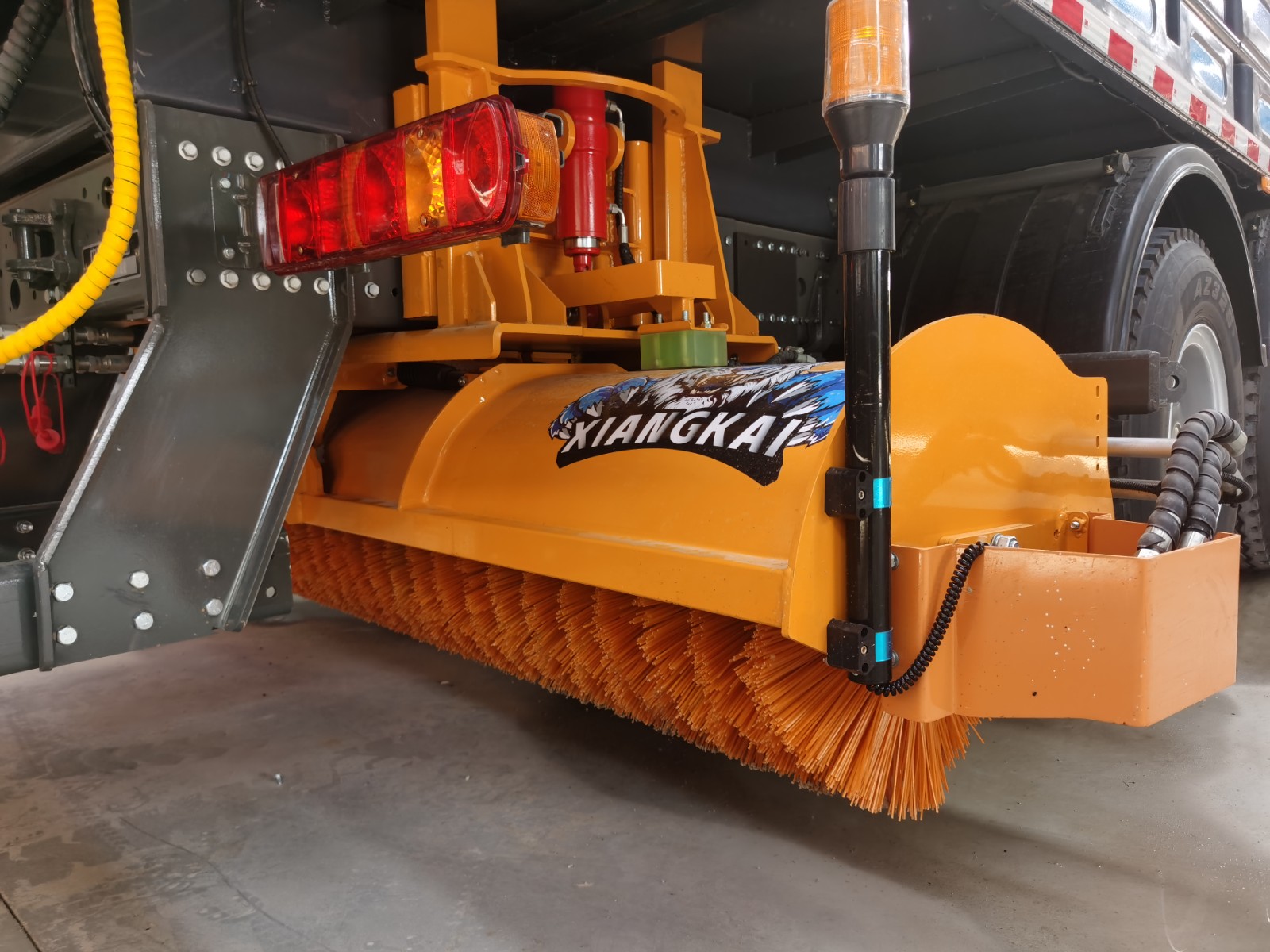

The center-mounted snow sweeping roller is mainly used for clearing newly fallen light snow or the remaining residual snow after snow removal with a snow shovel. This center-mounted swinging snow removal roller is generally installed on various types of vehicles with an axle distance greater than 4700mm. The roller is installed in the middle of the vehicle, with a suspension structure, and can be quickly disassembled. It is suitable for clearing snow after new snowfall in urban roads, airports, squares, scenic areas, etc. The rotation of the roller is driven by the chassis power take-off device, which drives the hydraulic pump and then the roller rotates. The roller adopts a sheet-type combined structure, and the brush wires are made of high-quality wear-resistant materials, with a long service life. It is convenient to replace after the roller is worn. The snow removal roller is composed of the roller assembly, frame, roller support bracket, lifting swing frame and control mechanism.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
| Project | Unit | Parameters or configurations | ||
| Parameter Introduction | weight | kg | ≥520 | |
| operating speed | km/h | 40 | ||
| Snow removal roller diameter | mm | 450 | ||
| Snow removal depth | mm | 300 | ||
| Effective snow removal width | mm | 2200 | ||
| Rolling brush working speed | r/min | 270-650 | ||
| Hydraulic system pressure (rotational speed) | Mpa | ≥16 | ||
| applicable temperature | ° | -45 | ||
| Requirements for the DC battery | V | 12/24 | ||
| Maximum working torque of the motor | N/M | ≥625 | ||
| Power extraction method | / | Vehicle-mounted transmission power take-off (or transfer case) | ||
Product Features
Vehicle Product Features
1. Compact structure and high compatibility with snow truck chassis. It can be mounted on the rear lower part of the vehicle to improve snow removal efficiency.

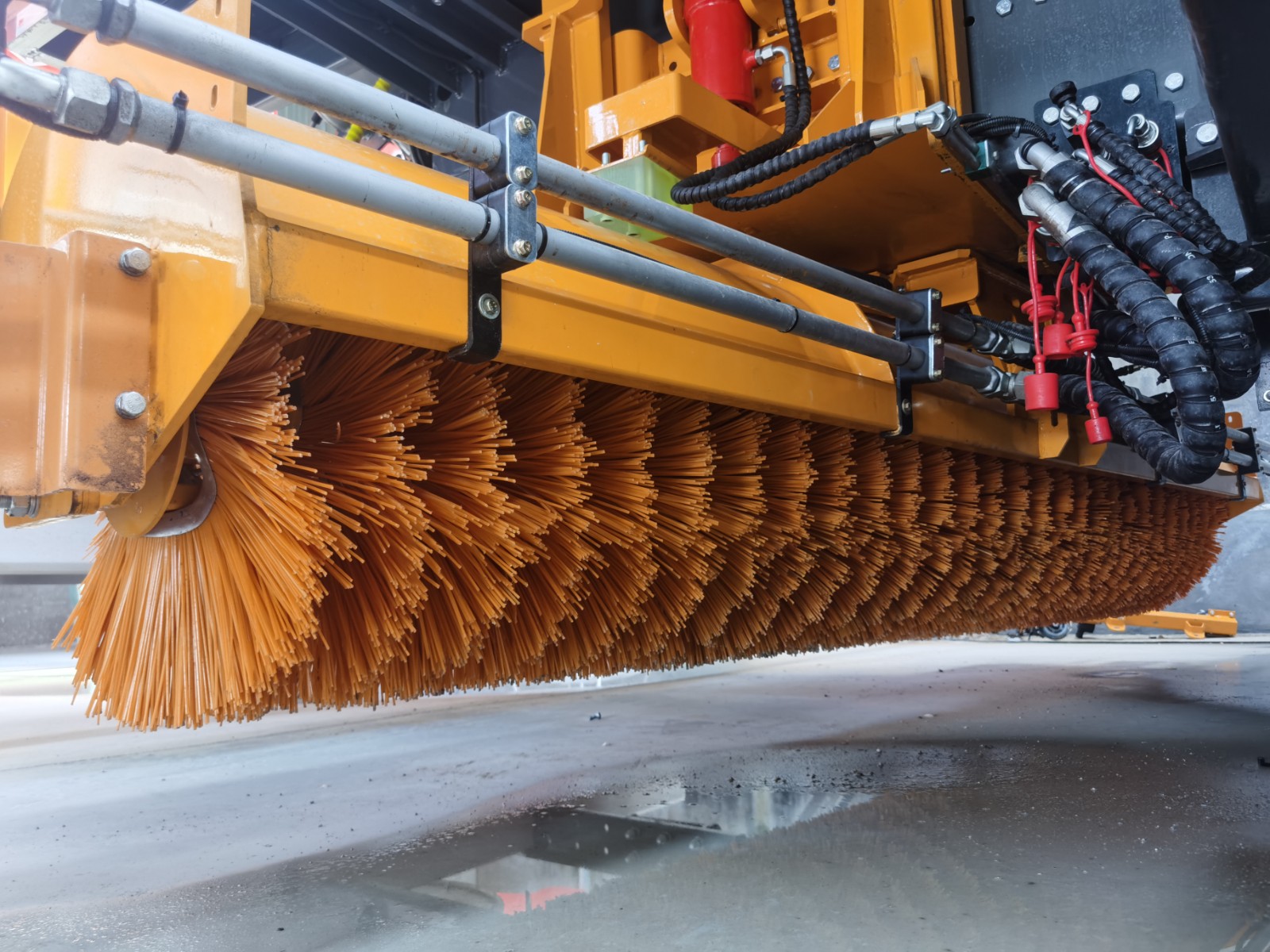

2.The main body of the rotary brush adopts a high-strength steel frame. The brush shaft is wrapped with high-density bristles to form a cylindrical sweeping unit, ensuring structural stability during high- speed rotation.
3.Fitted with hydraulic motors and self-aligning bearings at both ends of the rotary brush. The synchronous transmission system delivers balanced power output and prevents uneven wear caused by one-sided stress.
4.Equipped with multi-stage lift adjustment cylinders with a stroke range of 0-310 mm. Combined with hydraulic valve groups, it can precisely control the contact pressure between the rotary brush and the ground according to snow depth.
5. Adopting adaptive road curvature design, the rotary brush automatically adjusts its pitch angle within the range of -5° to +5° following road undulations, realizing all-round cleaning on uneven road surfaces.
6.It features an integrated steering adjustment function with a deflection angle of 25° left and right. The hydraulic push rod controls the lateral deflection of the rotary brush to gather and push snow to one side or both sides, adapting to various operating scenarios.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question: Can the roller brush deflect left and right?
Answer: Yes. The rear rotary brush can deflect left and right with a deflection angle of 25°. The angle may vary slightly due to the space layout of different vehicle models. Driven by hydraulic push rods, the brush achieves lateral deflection to push snow to one side or both sides, adapting to various working conditions.
Question:How many obstacle avoidance mechanisms are equipped on the roller brush?
Answer: Four pieces.
Question:What is the driving mode of the roller brush?
Answer: The roller brush is driven by a single-side hydraulic motor.
