Pickup Truck Snow Plow

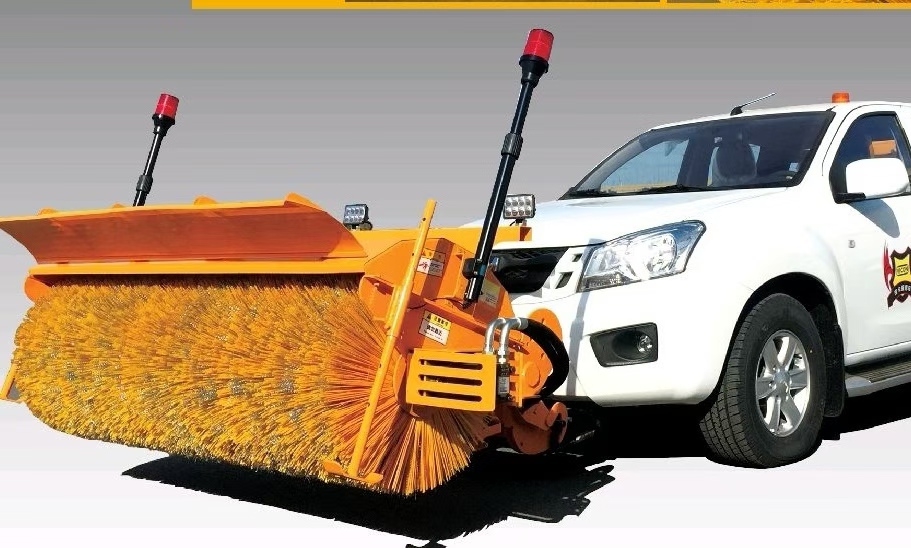

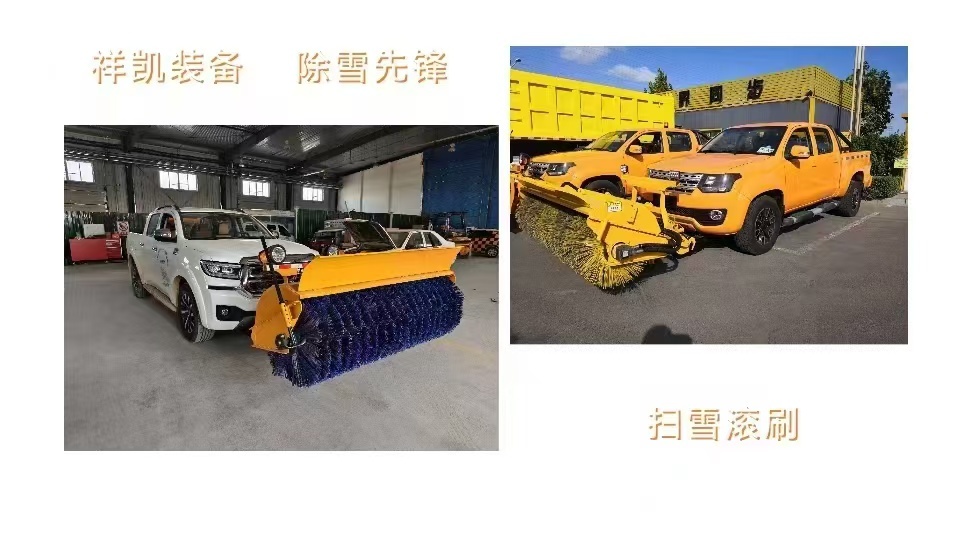

Light snow plow.Pickup truck snow plow.quick connect snow plow for pickup.snow plows for half ton pickups.Snow plow for jeepProduct introduction and Scene application
1. The roller brush and the vehicle chassis are quickly connected and disassembled by a drive-in type within 3 minutes. and it can be quickly interchanged with the snow shovel.
2. The roller brush frame is guided by casters and can float up and down along the undulation of the road surface, and can twist left and right along the cross slope of the road surface.
3. The pressure between the roller brush and the ground is adjustable. No matter how the diameter of the roller brush changes, the pressure remains constant and can be quickly replaced.
4. Independent lighting system: It is equipped with a safety-switching independent lighting system that can automatically switch with the lighting system of the chassis vehicle, meeting the requirements of night operations and ensuring operational safety. =
5. The upper assembly equipment is driven by an independent power unit and must not conflict with the power supply of the chassis vehicle.
6. The roller brush is driven by a gasoline engine to the hydraulic pump station and starts electrically
7. Control form: Cab control.
8. With an independent hydraulic system, it can achieve functions such as lifting, lowering and tilting. The front of the pickup truck is suspended, and the snow removal Angle is 32° on both sides. The contact area with the ground can be adjusted, and the cleaning efficiency can reach 96%.
9. The drive mode of the roller brush is hydraulic drive. The pressure oil output by the hydraulic pump is directly sent to the hydraulic motor of the roller brush to replace the rotation of the roller brush.
10. The roller brush has a floating function to adapt to different road conditions for use.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
Project | Unit | Parameters or configurations | |
Snow plow for jeep Product Parameter | Structural width | mm | 2100 |
Bristle diameter | mm | 630 | |
Snow clearance thickness | mm | 200 | |
Working speed | r/min | 300 | |
Left and right deflection Angle | ° | ±30 | |
Snow removal width at 30º | mm | 1850 | |
Maximum snow removal speed | km/h | 40 | |
Flow rate of the roller brush system | L/min | 180 | |
Number of bristles | slice | 40 | |
operation mode | / | The cab is wired controlled | |
Product Features
Vehicle Product Features
(1)The roller brush is driven by an independent power unit, which avoids conflict with the power supply of the chassis vehicle and ensures independent operation and stable power performance of the vehicle during service.
(2)The roller brush comes with a built-in lighting system featuring high-brightness LED work lamps with strong penetration, suitable for snowy and foggy working conditions.

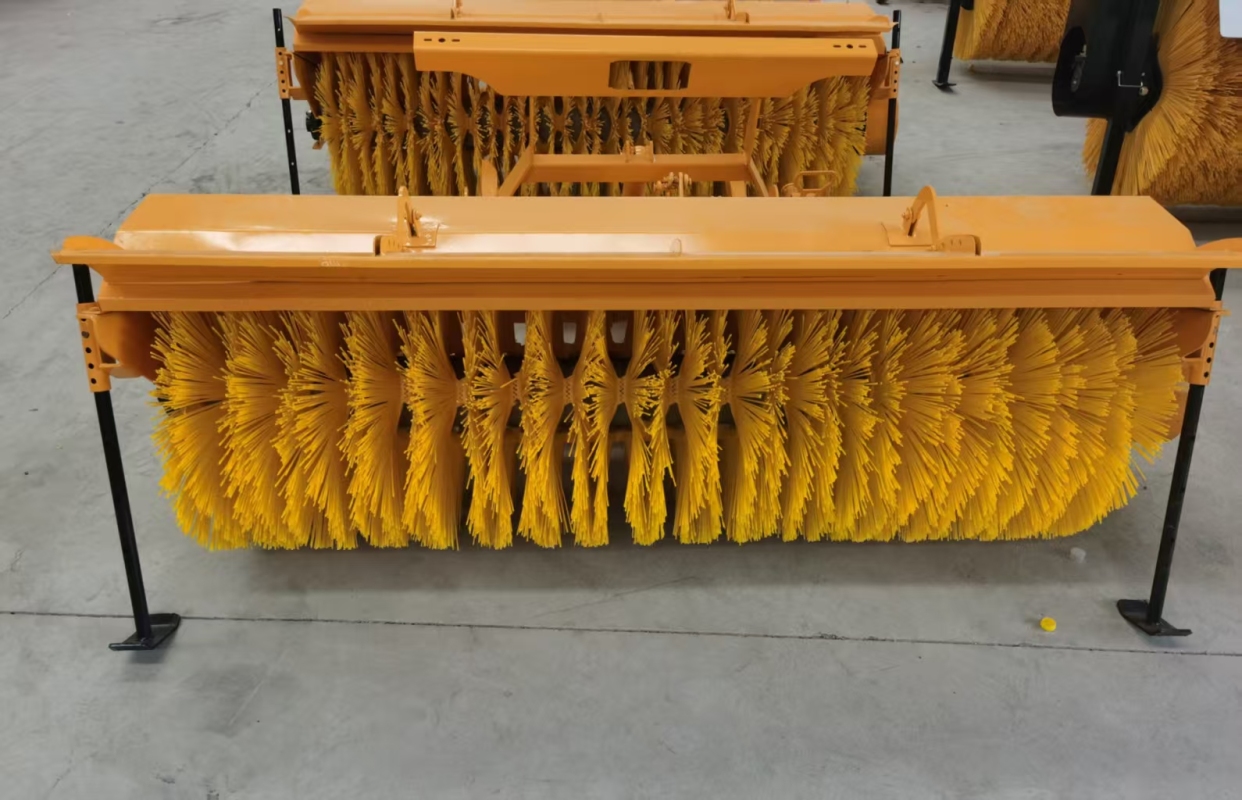

(3)The brush bristles are made of brand-new transparent granular virgin plastic material with superior elasticity. The bristles feature high tensile resistance and excellent fracture resistance, with a tensile strength of 1057N.
(4)Connection to chassis vehicle: Adopts drive-in quick coupling design. The hydraulic lines can be connected or disconnected without wrenches or other tools, and it is interchangeable with snow plows.
(5)Equipped with an independent hydraulic system, the unit enables lifting, lowering and side deflection functions. It is front-mounted on pickup trucks with an adjustable snow-discharging angle of 30° left and right respectively. The ground contact area is adjustable, and its snow removal efficiency reaches up to 96%.
(6)The roller brush frame is guided by casters, which can float up and down with road undulations and twist left and right following road cross slopes. Meanwhile, the caster-guided structure facilitates the assembly, disassembly and storage of the roller brush.

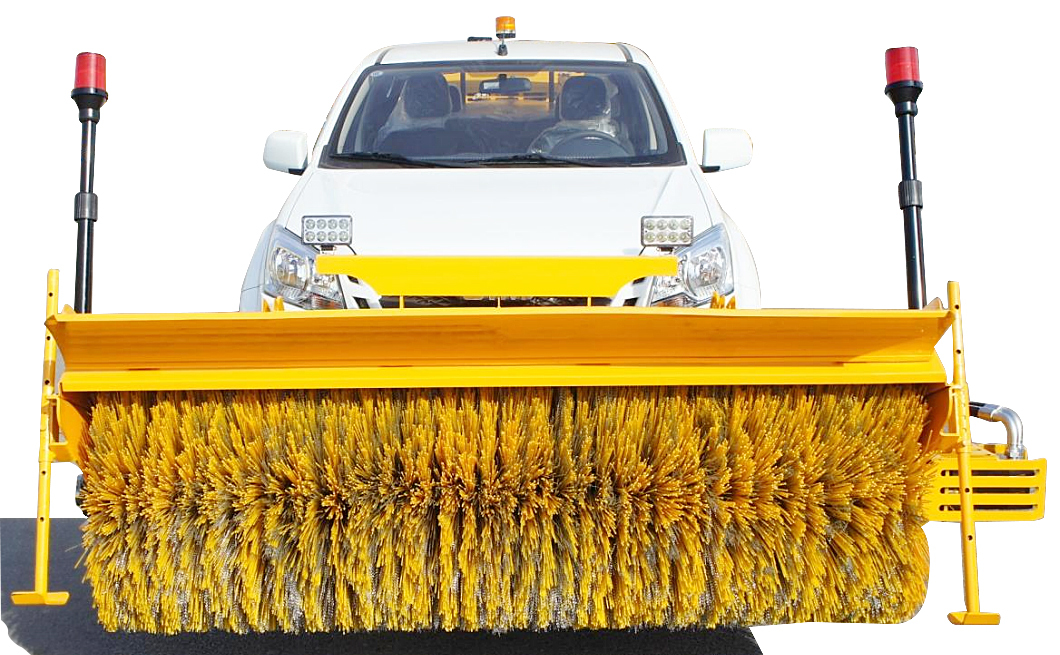

(7)The front-mounted snow broom is fitted with a snow baffle, preventing blown snow from obstructing the driver’s view during snow removal. It is also equipped with an automatic balancing function.
(8)The rotary broom features a floating mechanism to adapt to various road surfaces.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question: Is the rotary broom powered by chassis power take-off (PTO)?
Answer: No. The rotary broom is driven by an independent power unit, with no interference with the vehicle chassis power supply, ensuring independent operation of the truck and stable power performance during working.
Question:What material is adopted for the rotary broom bristles?
Answer: The plastic bristles are made of brand-new transparent virgin pellets, featuring superior elasticity, high tensile strength and excellent break resistance, with a tensile strength of 1057 N.
Question:How is the rotary broom controlled?
Answer: It is controlled by an integrated controller installed inside the cab, which manages the lifting/lowering and left-right swing of the snow broom.
