Multi-purpose Snow Plow
snow clearing car、Airport snow removal truck、snow blower sweeper、sweeper snow blower、snow sweeper car Product introduction and usage scenarios

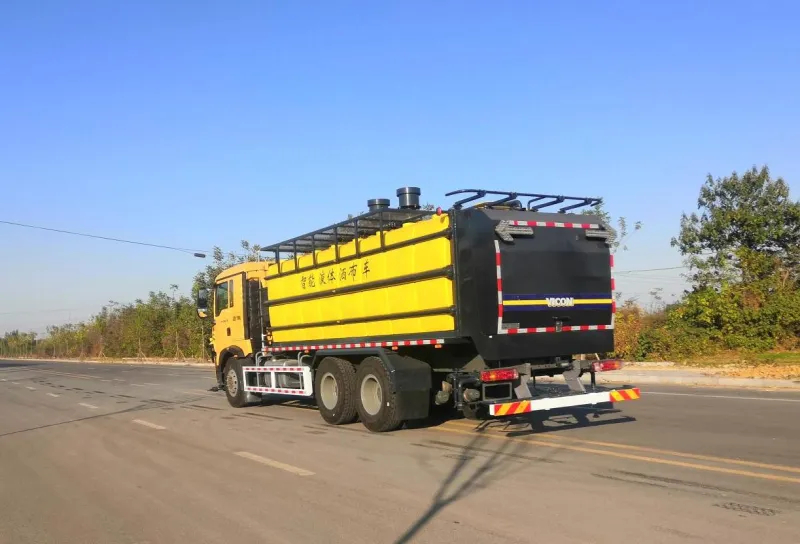

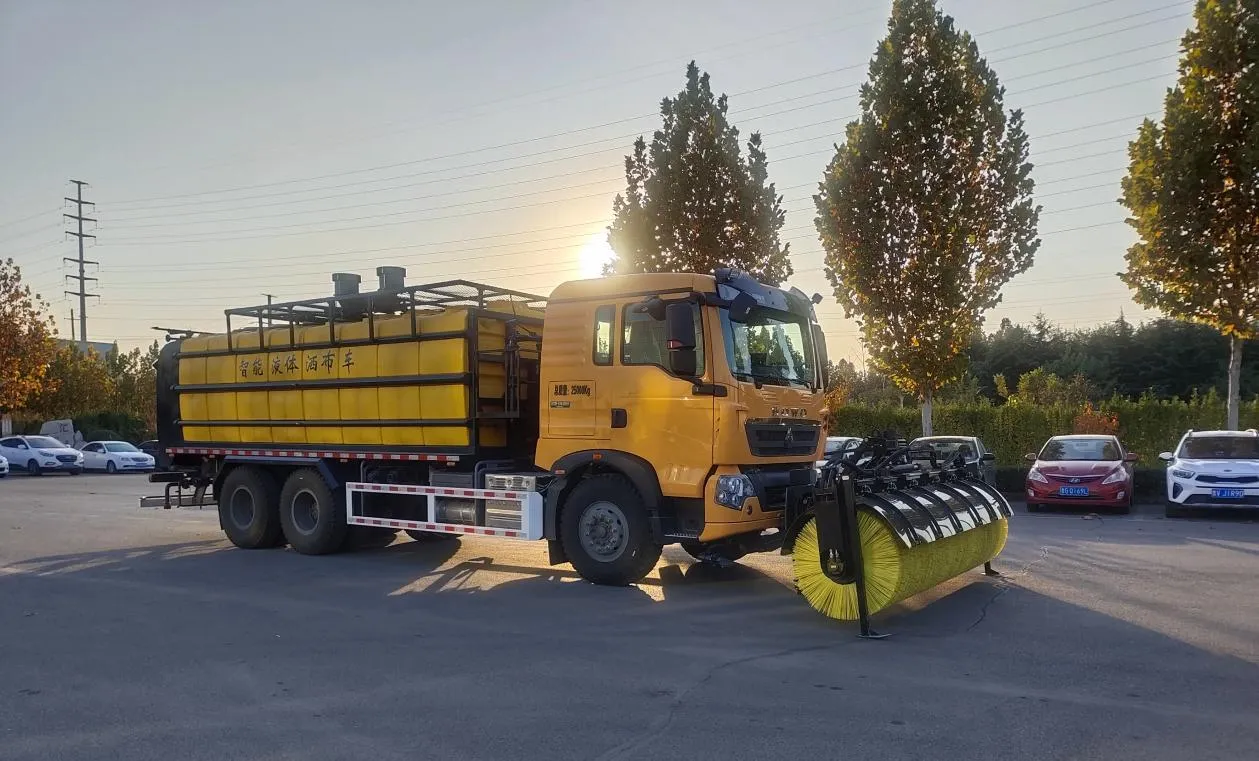

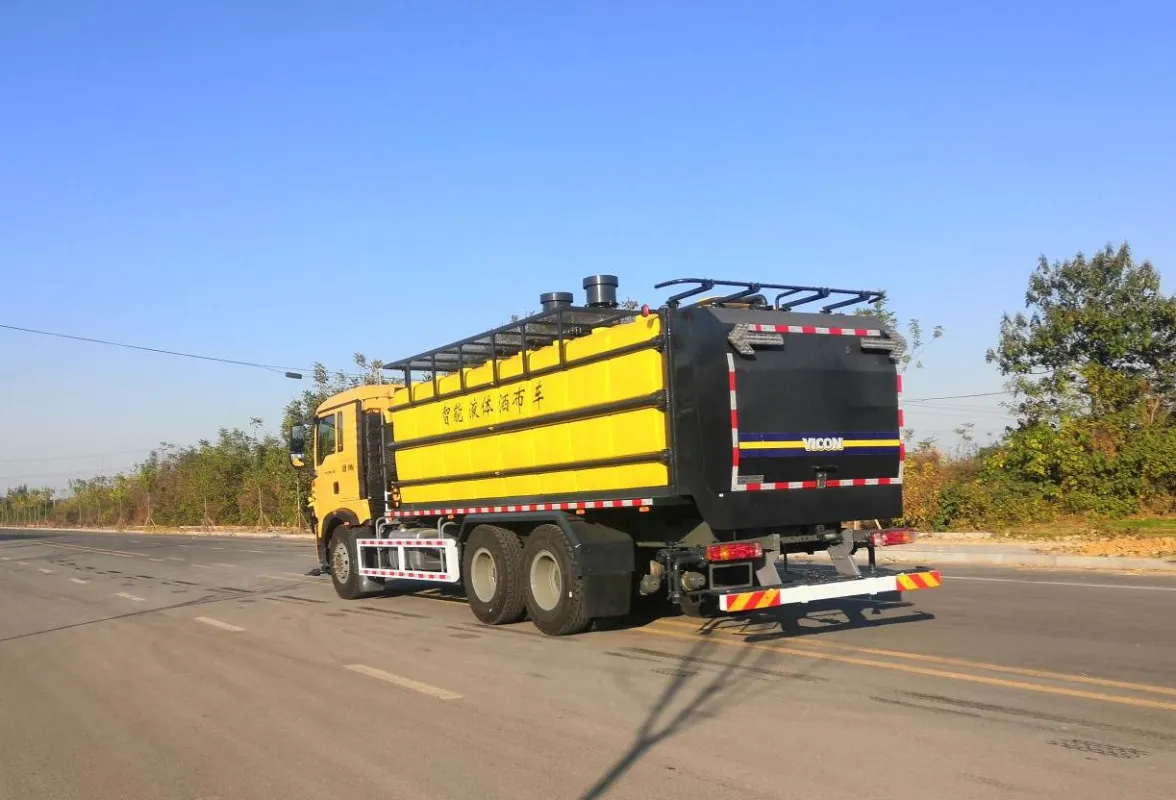

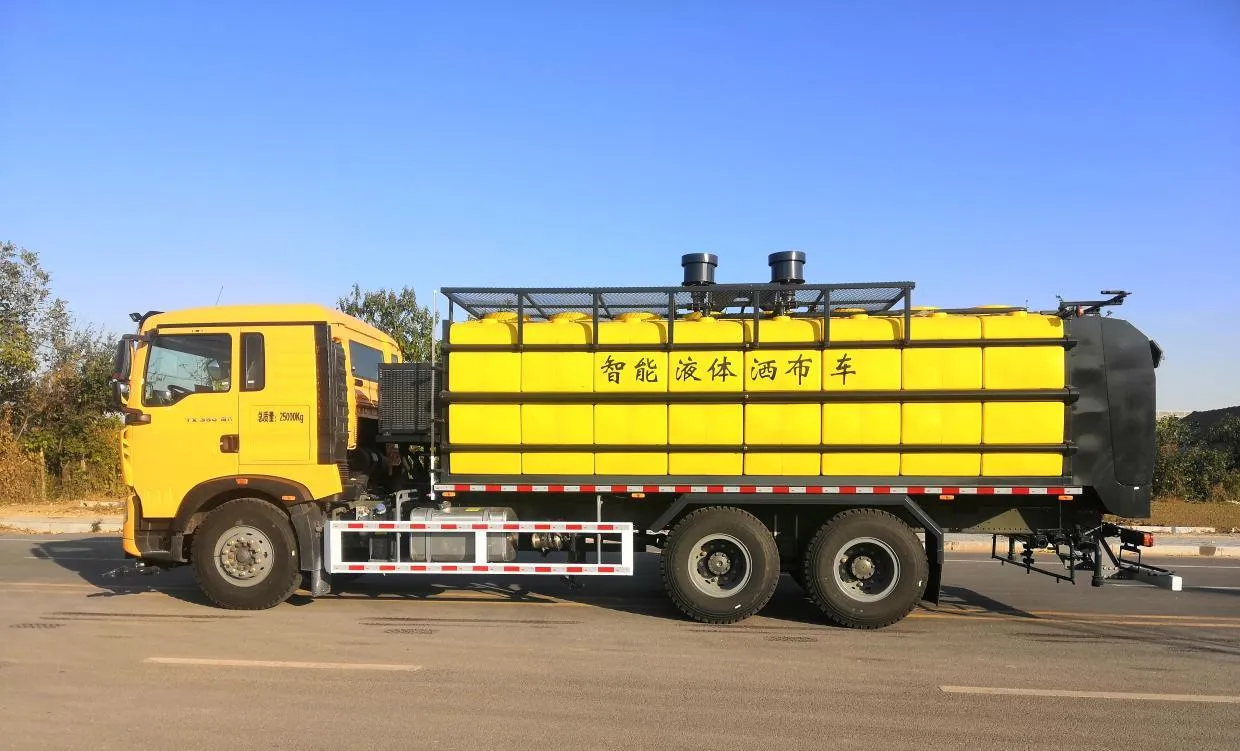

The airport runway multi-functional deicing liquid spuser is equipped with a Sinotruk Howo National V chassis, eight imported PE material water storage tanks, and a complete set of water spraying devices including front spray, middle spray and rear spray at the bottom, as well as a de-icing liquid spraying device. The rear part is equipped with an upper and lower spray device, as well as left and right fire pressure water supply pipes. The front part is equipped with a 30-meter high-pressure water gun. The front end is equipped with a quick-change hydraulic interface and a multi-functional hanging board. It can be fitted with a quick-change snow pusher or an optional snow sweeping roller brush and other snow removal devices.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
snow clearing car、Airport snow removal truck、snow blower sweeper、sweeper snow blower、snow sweeper car Product introduction and usage scenarios
| Project | Unit | Parameters or configurations | ||
| Vehicle parameters | Total mass | kg | 25000 | |
| Maximum speed | km/h | 80 | ||
| Drive type | / | 6✖4 | ||
| wheel base | mm | 4325 + 1350 | ||
| engine power | kw | 276 | ||
| Fuel form | / | Diesel | ||
Parameters and performance of fresh water distribution system | The total volume of PE water tanks | m³ | 16.2 | |
| Water supply volume of the water pump | m³/h | 60 | ||
| The maximum water supply pressure of the water pump | kg | 10 | ||
| The maximum water spraying width of the left and right front duckbill | m | munilateral 5/bilateral 10 | ||
| The maximum flushing width of the medium flush water | m | unilateral 12/bilateral 24 | ||
| Rear spray to the maximum water width | m | munilateral 12/bilateral 24 | ||
| Upper spray width | m | 5 | ||
| Lower spray width | m | 4 | ||
| High-pressure water gun spray amplitude | m | 30 | ||
Parameters and performance of the salt water distribution system | The total volume of PE water tanks | m³ | 16.2 | |
| Water supply volume of the water pump | m³/h | 40 | ||
The maximum water supply pressure of the water pump | kg | 10 | ||
| Set the pressure of the safety return valve in the water supply system | kg | 8 | ||
| Maximum spray width of salt water | mm | 3300 | ||
| Sprinkler tank (optional) | m | bottom 2.5/left side 8/Right side 8/a standard-sized sheet 18.5 | ||
snow sweeper car
snow clearing car
snow sweeper car
snow clearing car、Airport snow removal truck、snow blower sweeper、sweeper snow blower、snow sweeper car Product introduction and usage scenarios
(1) This device is named snow clearing car, Airport snow removal truck, snow blower sweeper, sweeper snow blower, snow sweeper car, Deicing fluid spreader. It is divided into 12,000 L and 16,000 L deicing liquid spreading operations.
(2) snow clearing car, Airport snow removal truck, snow blower sweeper, sweeper snow blower, snow sweeper car. This equipment is a dedicated vehicle. It can be used for sprinkling water in summer and for spreading de-icing agents in winter.
(3) snow clearing car, Airport snow removal truck, snow blower sweeper, sweeper snow blower, snow sweeper car This vehicle is suitable for scenarios such as urban roads, airports, and road administration roads, and is widely used.
